ATLASĀ® Non-Ferrous Baler

Facilities baling from one to three tons of aluminum and steel cans, aluminum and copper wire, aluminum siding, extrusion, radiators, etc. are Replaceable Body Shear Bladereaping big benefits from the new ATLAS Non-Ferrous Baler. The heavy constructed frame, perfect for the scrap industry, along with āStress Engineered Constructionā for superior size to weight ratio and a high efficiency power unit allows the ATLAS to perform at optimum efficiency. Specially designed bolt-on and replaceable body and ram shear blades provide maximum performance and ease of maintenance, which eliminates precutting of most materials. The ATLAS produces heavier, more dense, labor saving bales which equals more savings for you, and donāt forget the affordable price!

- Bales a variety of materials
- Replaceable body and ram shear bars
- Produces a 30ā³ x 48ā³ x 60ā³ size bale

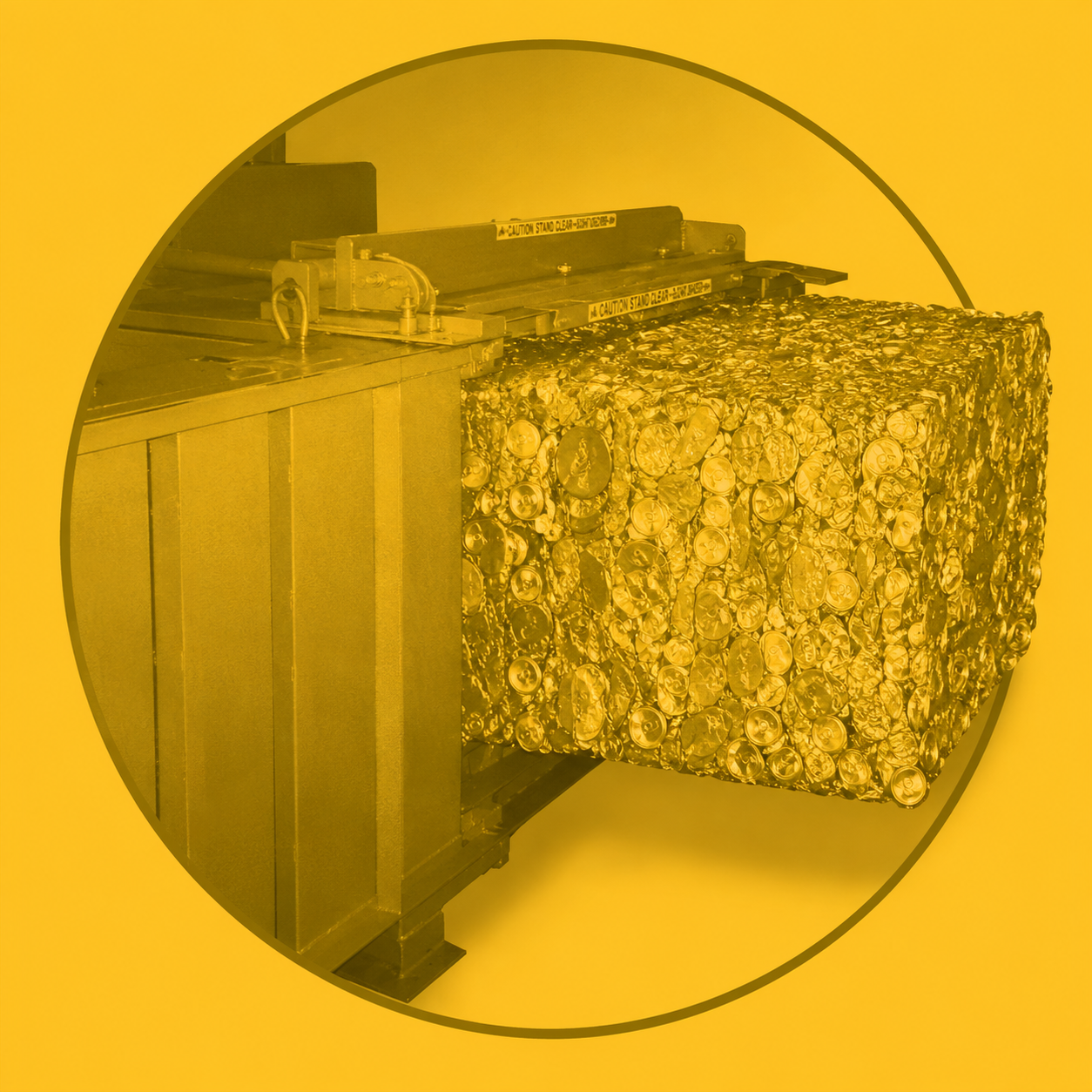

- Full Penetration ram for maximum compaction that fully ejects the bales
- Unique wire guides for quick and easy ties and clean-out
- Dual interlock on bale chamber door
- Programmable, UL listed, controller permits automatic or manual operation
- Lower photocell control
- Backed by Mark-Costelloās extensive baler warranty
- Wire guides and tie-through bale chamber door
Structural Dimensions: ATLAS

| Overall Dimensions | 22ā²-10ā³ L x 7ā²-0ā³ W x 6ā²-8ā³ H (hopper) (6960mm x 2134mm x 2032mm) |
| Charge Box | 45ā³ L x 60ā³ W x 29ā³ H (1143mm x 1524mm x 7366mm) |
| Clear Top Opening | 45ā³ L x 56ā³ W (1143mm x 1422mm) |
| Body | 1/4ā³ sides with 3/8ā³ T1 liners; 3/8ā³ floor with 3/8ā³ T1 liner; 1/2ā³ T1 tongue & groove floor |
| Ram | 1/2ā³ top; 3/4ā³ face; 1/2ā³ bottom with 3/8ā³ T1 liner; 1/2ā³ T1 tongue & groove |
| Body & Ram Shear Blades | A514 steel, bolt-on |
| Baler Weight | 12.5 Ton |
| Hydraulic/Electronics | |
| Power Pack Motor | 40 HP |
| Pump (Vane Type) | 75 GPM |
| Oil Reservoir Volume | 150 Gal |
| Cylinder Type | 9ā³ bore x 6ā³ rod |
| Cylinder Stroke | 96ā³ |
| Performance Data | |
| Max. System Pressure | 3000 psi. |
| Max. Force | 190,000 lbs. |
| Max. Platen Pressure | 109 psi |
| Cycle Time | 22 seconds (at partial penetration) |
Structural Dimensions: ATLAS ET

| Overall Dimensions | 22ā²-10ā³ L x 7ā²-0ā³ W x 6ā²-8ā³ H (hopper) (6960mm x 2134mm x 2032mm) |
| Charge Box | 45ā³ L x 60ā³ W x 29ā³ H (1143mm x 1524mm x 7366mm) |
| Clear Top Opening | 45ā³ L x 56ā³ W (1143mm x 1422mm) |
| Body | 1/4ā³ sides with 3/8ā³ T1 liners; 3/8ā³ floor with 3/8ā³ T1 liner; 1/2ā³ T1 tongue & groove floor |
| Ram | 1/2ā³ top; 3/4ā³ face; 1/2ā³ bottom with 3/8ā³ T1 liner; 1/2ā³ T1 tongue & groove |
| Body & Ram Shear Blades | S7 Steel, bolt-on/replaceable |
| Baler Weight | 14.5 Ton |
| Hydraulic/Electronics | |
| Power Pack Motor | 50 HP |
| Pump (Vane Type) | 94 GPM |
| Oil Reservoir Volume | 200 Gal |
| Cylinder Type | 10ā³ bore x 7ā³ rod x 96ā³ stroke |
| Volume Displacement | 7414 ft³/hr |
| Performance Data | |
| Max. System Pressure | 3000 psi. |
| Max. Force | 190,000 lbs. |
| Max. Platen Pressure | 109 psi |
| Cycle Time / Strokes per Minute | 22 seconds (at partial penetration) 2.7 |
