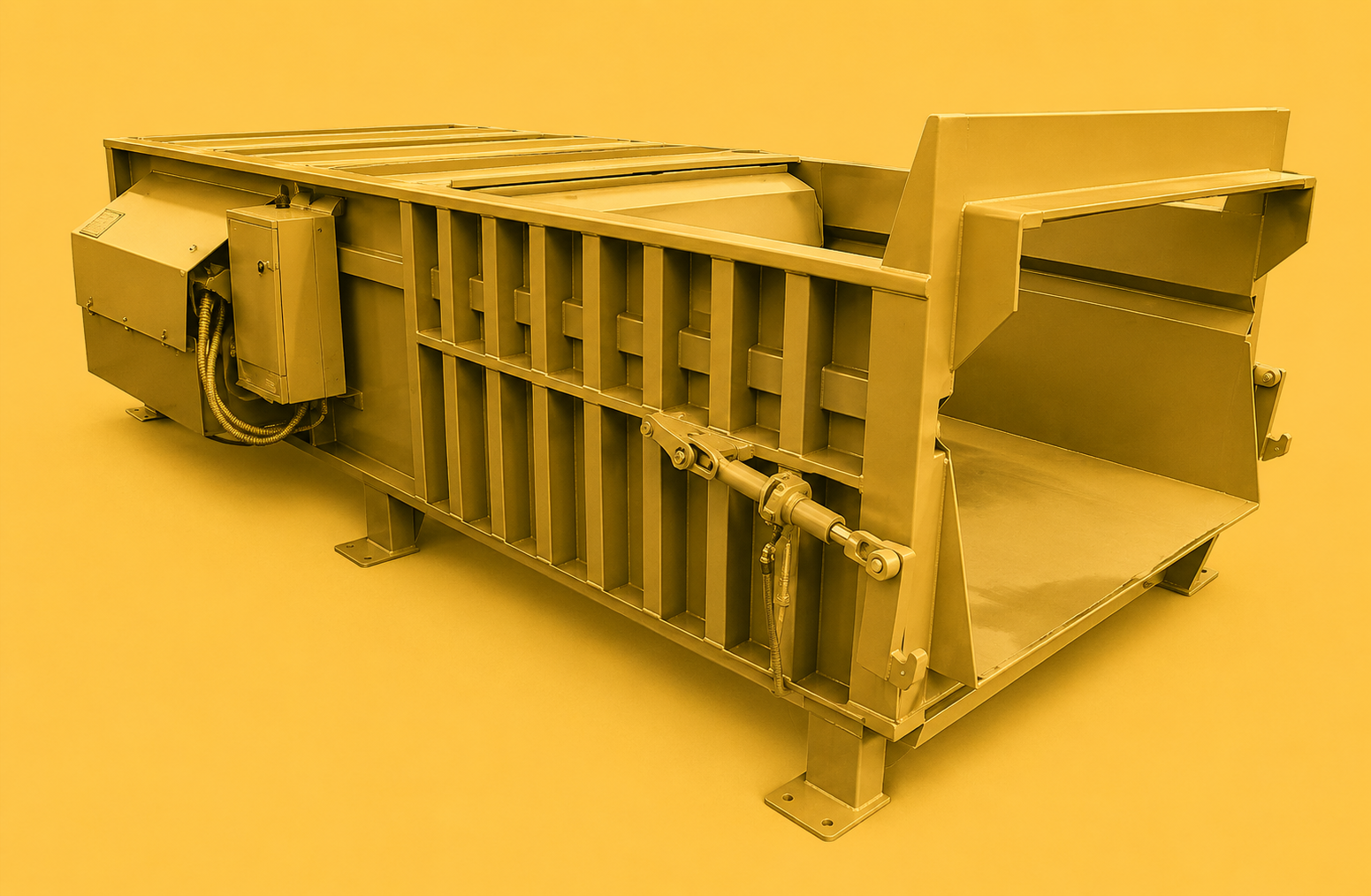

Commercial Stationary Compactor RamJet 325HD Heavy Duty
Heavy Duty Commercial Compactor…
The large 59 1/2″W x 67 1/2″L clear top opening and superior strength of the RJ-325HD make it just right for large volumes of crates, skids, and other hard-to-compact industrial refuse and trash. Waste is crushed to a fraction of their original bulk!
Superior Engineering…
Mark-Costello’s RJ-325HD is engineered with extra steel to meet the demands of heavy-duty industrial use. Cylinder supports, 1″ thick breaker bar, 3/8″ ram top and extra side supports are added for superior endurance. Also standard on the RJ-325HD are 1/4″ thick steel charge box liners and 1/2″ thick abrasion resistant steel plate on the charge box floor.
Ram Guide System
The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.
Mark-Costello’s RamJet 325 Compactors are Totally UL Listed!
Side-Mount Power Unit
Mark-Costello’s Side-Mounted Power Unit, the first in the industry, offers the convenience and ease-of-maintenance of a remote power pack with the space savings of an integrated power pack. This new configuration eliminates ALL electrical components inside the compactor.
The Pump on Mark-Costello’s high performance Side-Mounted Power Unit is secured to a “C” flange TEFC motor with a machined bracket that guarantees coupling alignment. The Limit Switch and all other parts of the power unit are easily accessible for ease-of-maintenance. The Reset Button for the Motor Starter is also located on the outside which eliminates entry into the control box.
Advanced Control System
The RJ-325HD features an advanced, simplified control system with 2 button operation. It is key-operated and fully automatic. The heavy duty push button controls are contained in a weatherproof NEMA 13 enclosure. Connected to the power pack with 13′ of sealtite, the controls can be located for operator convenience.
Mark-Costello’s RamJet 325 Compactors are Totally UL Listed!
Structural Dimensions
- Side-Mount Power Unit
- Power Unit Weather Cover
- Control Panel Box
- Motor Starter Reset Button
- Limit Switch
- Ram
- Ram Guide Shoes with Replaceable Wear Strips
Structural Dimensions
| A | B | C | D | E | *F | *G | *H | I | J | K | L | M | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 173 3/4″ 3035 mm | 78″ 1981 mm | 48 9/16″ 1233 mm | 69 1/8″ 1756 mm | 60″ 1524 mm | 75″ 1905 mm | 160 3/4″ 2705 mm | 6 1/2″ 165 mm | 31 1/2″ 800 mm | 9″ 229 mm | 102 7/8″ 1873 mm | 70 7/8″ 1162 mm | 39 7/16″ 1002 mm | 9″ 229 mm | 38 1/2″ 978 mm | 14 3/4″ 375 mm | 5″ 127 mm |
* At Bolt Centers (reference dimensions only)
| Charge Box Capacity | |
| [Mfrs. Rating] | 3.15 cy (2.41 m³) |
| [WASTEC Rating] | 2.53 cy (1.93 m³) |
| Clear Top Opening | 67.5″ x 59 1/2″ (1715mm x 1511mm) |
Performance Data
| Cycle Time | 50 s |
| Total Normal Force | 46,700 lb (208 kN) |
| Total Maximum Force | 55,100 lb (245 kN) |
| Normal Ram Face Pressure | 27.1 psi (187 kPa) |
| Maximum Ram Face Pressure | 31.9 psi (220 kPa) |
| Ram Penetration | 13″ (330 mm) |
Electrical Equipment
| Cycle Time | 50 s |
| Total Normal Force | 46,700 lb (208 kN) |
| Total Maximum Force | 55,100 lb (245 kN) |
| Normal Ram Face Pressure | 27.1 psi (187 kPa) |
| Maximum Ram Face Pressure | 31.9 psi (220 kPa) |
| Ram Penetration | 13″ (330 mm) |
Hydraulic Equipment
| Hydraulic Pump Capacity | 18.5 gpm (70 L/min.) |
| Normal Pressure | 1650 psi (114 bar) |
| Maximum Pressure | 1950 psi (134 bar) |
| Hydraulic Cylinder | 6″ Bore x 4″ Rod (152 mm x 102 mm) |
| Reservoir Capacity | 30 gal. (114 L) |
| Weight | 5700 lbs. (2586 kg) |
Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC’s Stationary Compactor Certification Program. Products must be used with safe practice and in accordance with said regulations and standards.
Optional Features Available
The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click here for details.
Multi-cycle timer, dual controls, ozone odor control system, security chutes, hoppers, cart dumpers and many other options are also available as well as a full line of compaction containers.
Visit our Options web pages to choose from a wide range of steel and operational options and accessories.
