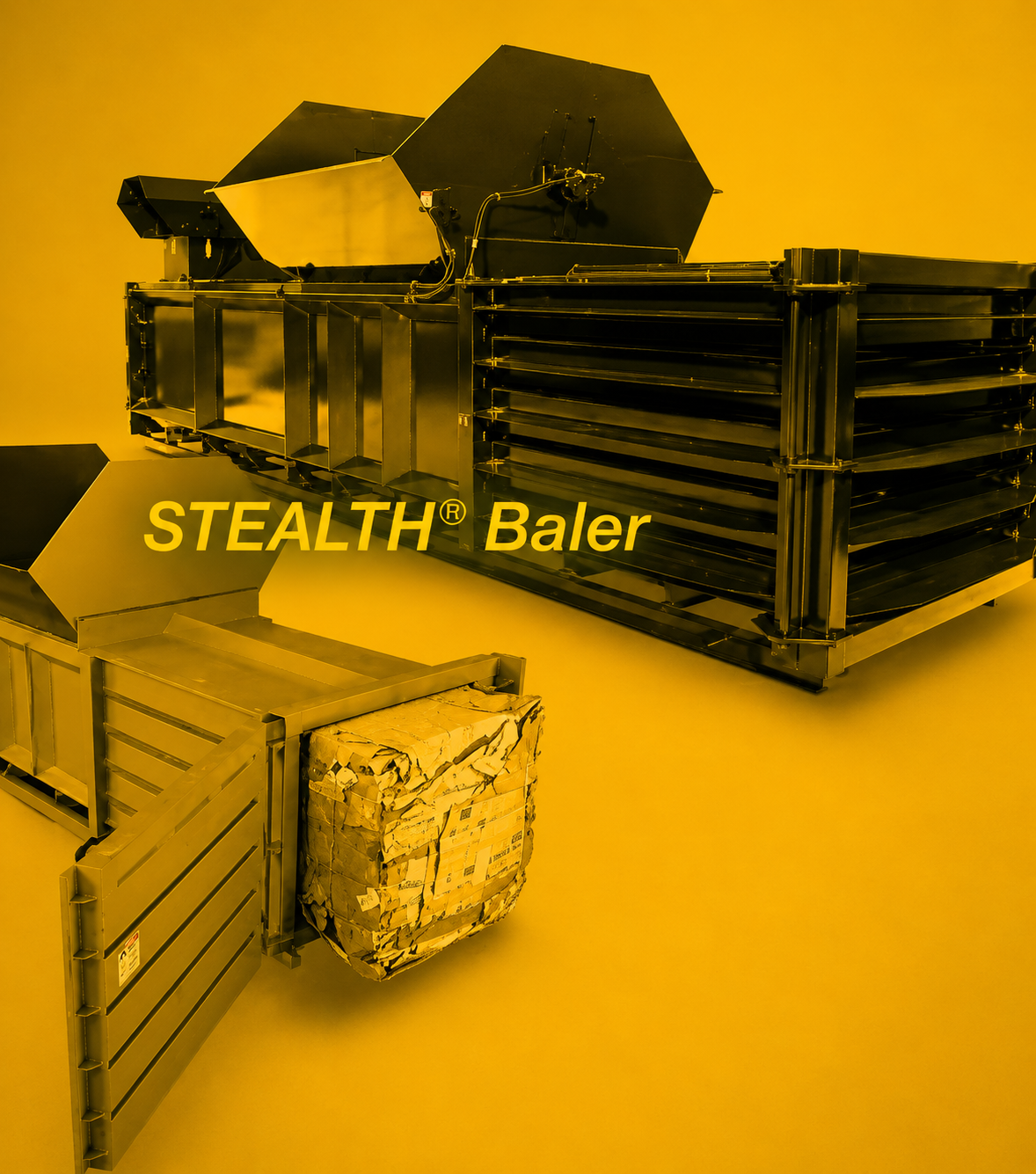

STEALTH® Baler
The STEALTH® Baler is the most affordable horizontal baler for OCC on the market.
The Stealth Baler is specially designed for baling corrugated cardboard. It is capable of baling 2-3 tons per hour.
Mark-Costello also manufactures a full-line of Conveyors and Material Reduction Equipment.
Some of the Features and Benefits:
- With its large 46″ x 60″ feed opening, you can produce bales that weigh more than 1600 pounds (OCC).
- Through the Door or Sides Tie-Off
- Self-Contained Power Unit
- Start-up Alarm.
- Electrical Disconnect
- Optional Features: Photocell controls, bale made alarm, chute feed hopper, conveyor controls, oil heater.
- Manual Controls
- Lower photocell control
Structural Dimensions
| Overall Dimensions | 255″ L x 83″ W x 92″ H (hopper) |
| Hopper Type | Hand Feed |
| Feed Opening | 46″ L x 60″ W |
| Feed Height | 70″ |
| Baler Weight (approx.) | 11,300 lbs. |
Hydraulics
| Cylinder Size | 6″ bore X 4″ rod |
| Cylinder Stroke | 82″ |
| Pump Flow | 18.5 GPM |
| Reservoir | 30 gal. |
| Maximum Pressure | 2400 psi |
Electrical
| Motor Size | 20 hp |
| Main Voltage | 460 VAC, 3 phase |
| Control Voltage | 120 VAC |
| Control Panel | UL Listed |
Performance Data
| Cycle Time | 50 sec. |
| Maximum Force | 67,900 lbf. |
| Ram Face Pressure | 43 psi |
