TC-300T Trash Commander Stationary Compactor
TC-300T Trash Commander Stationary Compactor
The new RamJet TC-300 TANK is the third in the Trash Commander Series of short, yet powerful stationary compactors. With crossed-cylinder technology, our latest compactor is the most exciting new development in the waste compaction industry. The 3 cubic yard capacity compaction chamber is incorporated into a body that is only 9′-41/2″ long. This allows for greater throughput capacity in applications where space is limited such as retail outlets, department stores, malls, large restaurants, grocery stores and shopping centers.
The TC-300 Tank compared to a standard 3 cy. compactor showing the difference in overall length – yet the clear-top opening of the TANK is the same as the larger RJ-325. The picture also illustrates that if the TANK is fitted with a 4-sided, rear feed hopper, there is no need for tread plates or guard rails.
The large 67 1/2″ L x 58″ W clear-top opening allows for large bulky items and greater throughput capacity. The TC-300 TANK is ideal for dock feed applications. With a 4-sided, rear feed hopper, there is no need for special walk-on tops or guard rails.
Designed to meet applications where space is limited, but superior strength, dependability and compaction performance are a must!
The Shortest 3 Cubic Yard Compactor in the Industry!

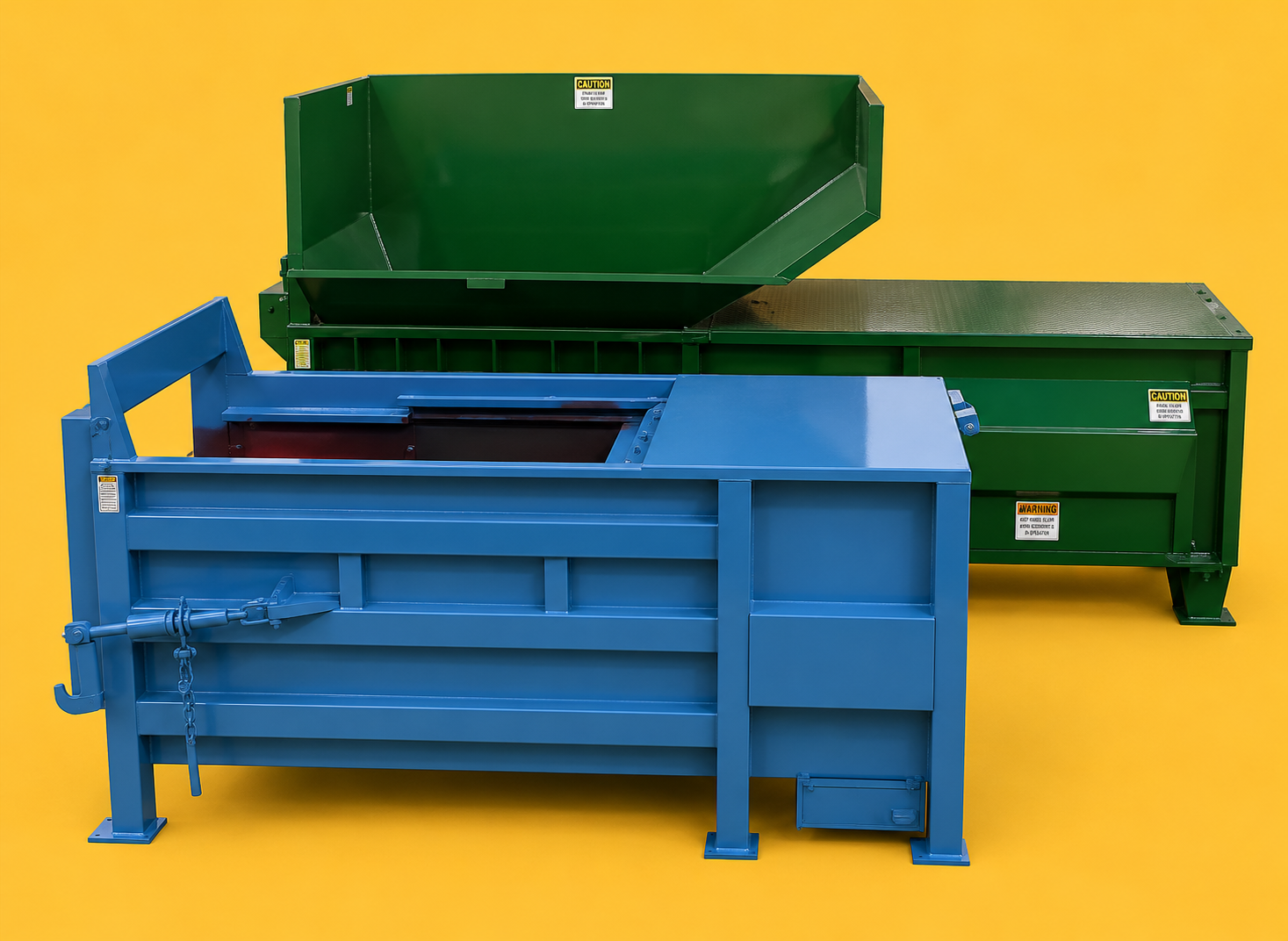

The TC-300 TANK (foregouund) compared to a standard 3 cy. compactor showing the difference in overall length – yet the clear-top opening of the TANK is the same as the larger RJ-325. The picture also illustrates that if the TANK is fitted with a 4-sided, rear feed hopper, there is no need for tread plates or guard rails.

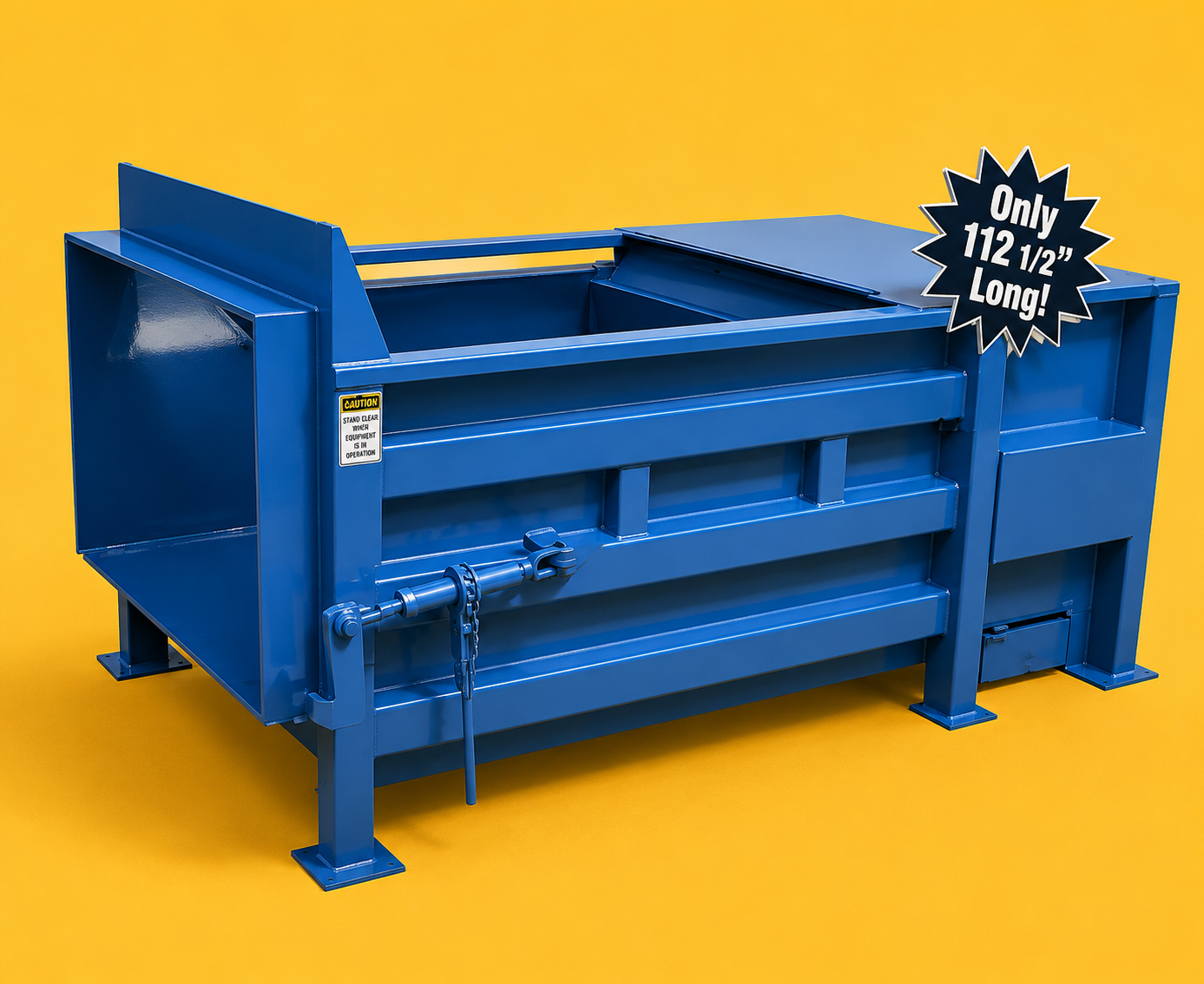

TC-300 3cy. TANK
Designed to meet applications where space is limited, but superior strength, dependability and compaction performance are a must!
The TC-300 TANK features Marathon’s Signature Series Warranty:The TC-300 TANK features Marathon’s Signature Series Warranty:
- 3 years structure
- 2 years components
- and 6 months labor
Specifications:
| ChargeBox Capacity | HD | HDHF |
|---|---|---|
| Mfrs. Rating | 3.0 cy | 3.0 cy |
| WASTEC Rating | 2.27 cy | 2.27 cy |
| Clear Top Opening Width | 58″ | 58″ |
| Clear Top Opening Length | 67-1/2″ | 67-1/2″ |
Performance Characteristics:
| Spec | HD | HDHF |
|---|---|---|
| Cycle Time | 77 sec | 59 sec |
| Total Normal Force | 54,500 lbf | 52,700 lbf |
| Normal Ram Face Force | 34.9 psi | 40.2 psi |
| Ram Penetration | 13.5″ | 13.5″ |
Hydraulic/Electronics Equipment:
| Spec | HD | HDHF |
|---|---|---|
| Remote Power Unit Motor | 10 hp | 15 hp |
| 3/60/230-460 Control Voltage | 120 VAC | 120 VAC |
| UL Label Panel Box: All Circuits Fused: Standard Controls, Keylock Stop, Reverse | ||
| Pump | 10 gpm | 13 gpm |
| Normal Pressure | 2,000 psi | 2,300 psi |
| Cylinder Stroke (2) | 55.25″ | 55.25″ |
| Cylinder Bore (2) | 4.5″ | 4.5″ |
| Rod Diameter | 2.5″ | 2.5″ |
Weight:
| Spec | HD | HDHF |
|---|---|---|
| Weight | 5,800 lbs | 5,800 lbs |
The TANK has Marathon’s patented CYCON Life-Xtender Cyclic Control System for reliable, solid state circuitry that eliminates all pressure and limit switches, extends the life of cylinders and hoses and assures maximum compaction ratios and performance.
